220V LED strip lighting delivers minimalist room illumination without the clutter of external transformers. This guide walks through connecting SMD5050 strips directly to AC power for a clean, durable result — covering installation, safety requirements, and light output so you can judge whether this DIY upgrade suits your workspace or home perimeter.
Author: LifeKaki
⚡ Quick Guide: Installing 220V LED Strips in 5 Steps in 5 Steps
- Inspect the SMD5050 LED strip for physical damage or silicone defects.
- Verify the rectifier plug connection for secure AC power contact.
- Plan the routing path to ensure the strip remains straight and stable.
- Mount the waterproof strip using appropriate clips or adhesive backing.
- Perform a final brightness test to check for consistent light output.
📋 In This Article
- Tools & Materials — what you will need for this project
- Technical Specifications — device parameters
- 220V LED Strip Overview — initial inspection of the hardware
- SMD5050 Layout Analysis — examining the LED density and build
- Safe Connection Routing — connecting the rectifier plug
- Warm White Output Test — evaluating light consistency and brightness
- Frequently Asked Questions (FAQ) — answers to popular questions
📊 Technical Specifications & Components
| Voltage | 220V AC |
| LED Type | SMD5050 |
| Density | 60 LEDs per meter |
| Waterproof Rating | IP67 |
| Color Temperature | 3000K (Warm White) |
| Beam Angle | 120° |
| Service Life | 50,000 hours |
| Operating Temperature | -20°C to 60°C |
Tools & Materials Used
🔧
Automatic Wire Stripper Tool
AliExpress 🛒
🛠️
BUY ON ALIEXPRESS 🛒
Recommended
220V LED Strip Lighting
Step-by-Step Assembly & Testing
220V LED Strip Overview
No bulky transformers. This strip runs straight off AC mains through a compact rectifier plug — ideal for long perimeter runs where voltage drop would otherwise be a problem. The silicone casing carries an IP67 rating, so moisture and dust are handled. It feels solid, and it works indoors or in semi-exposed spots.

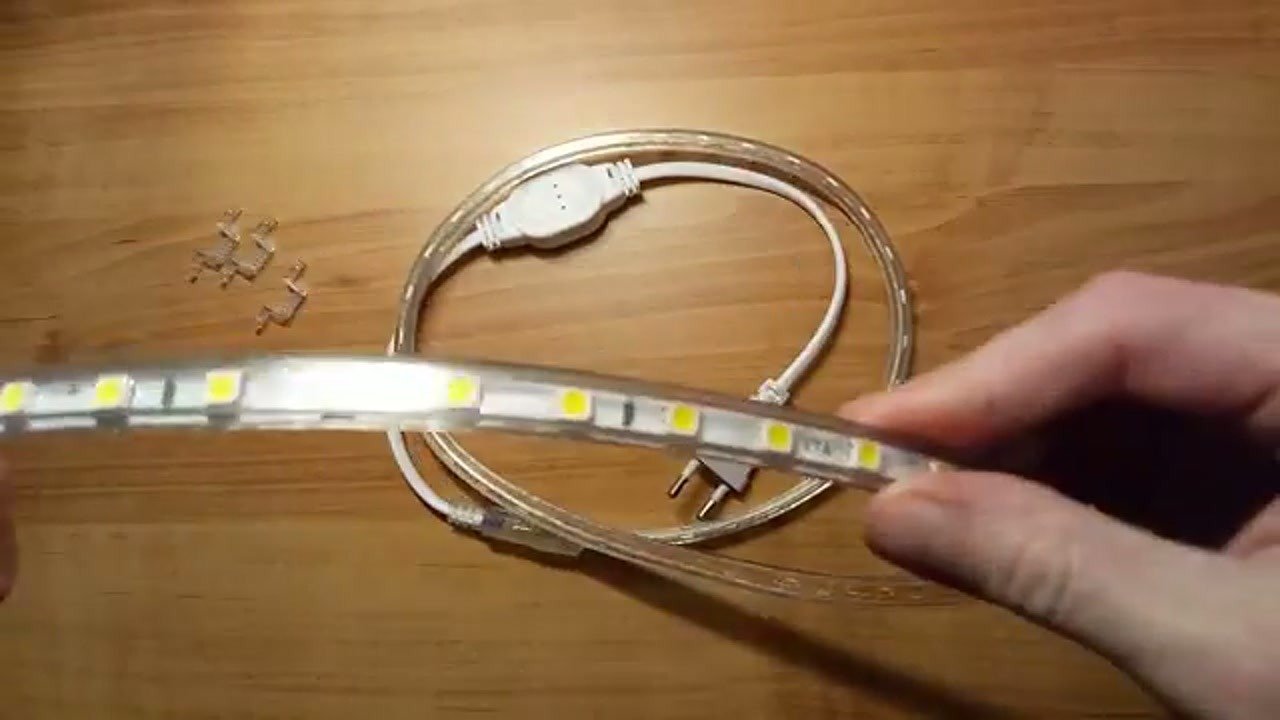

SMD5050 Layout Analysis
SMD5050 chips at 60 LEDs per meter give even output with no noticeable dark spots. The internal circuitry handles high-voltage input safely inside the silicone housing. Cut points are clearly marked if you need a shorter run. Build quality holds up along the entire reel.

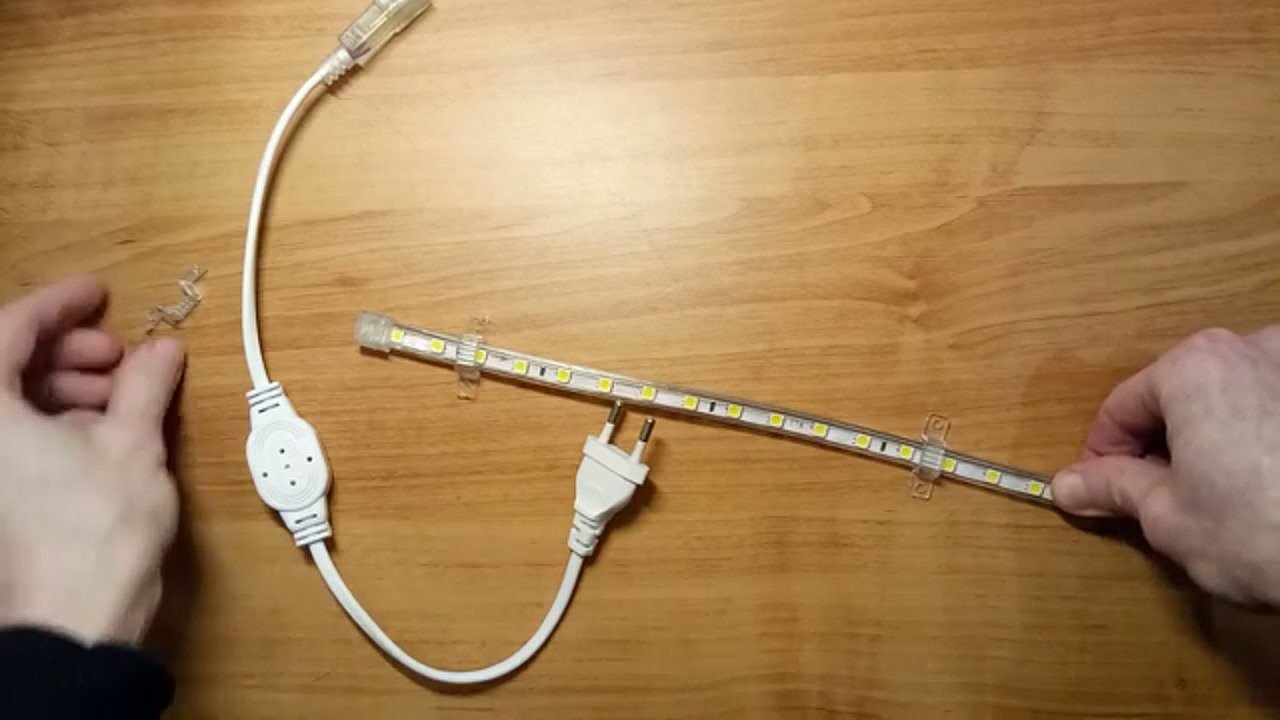

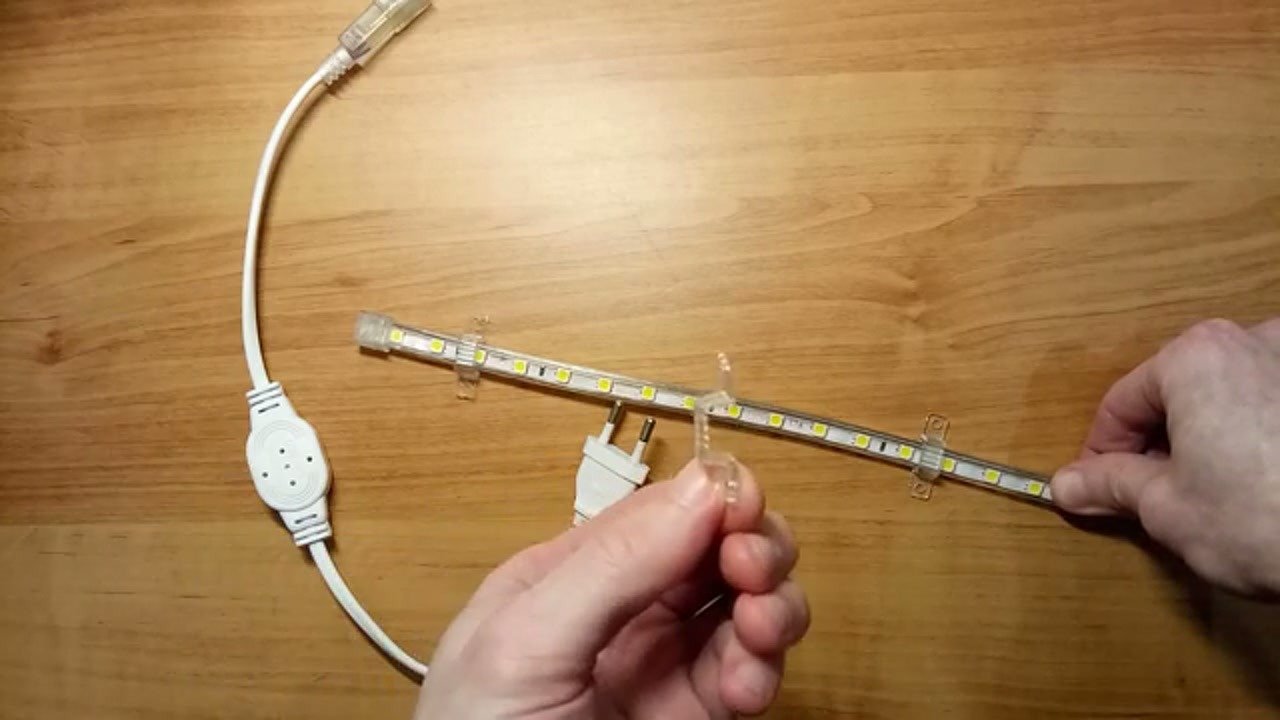

Safe Connection Routing
Align the rectifier plug pins with the internal conductors and push them in firmly — a loose contact means arcing. Secure the joint so it can’t pull apart. Route the strip away from sharp metal edges that could pierce the silicone, and keep the connection dry at all times.

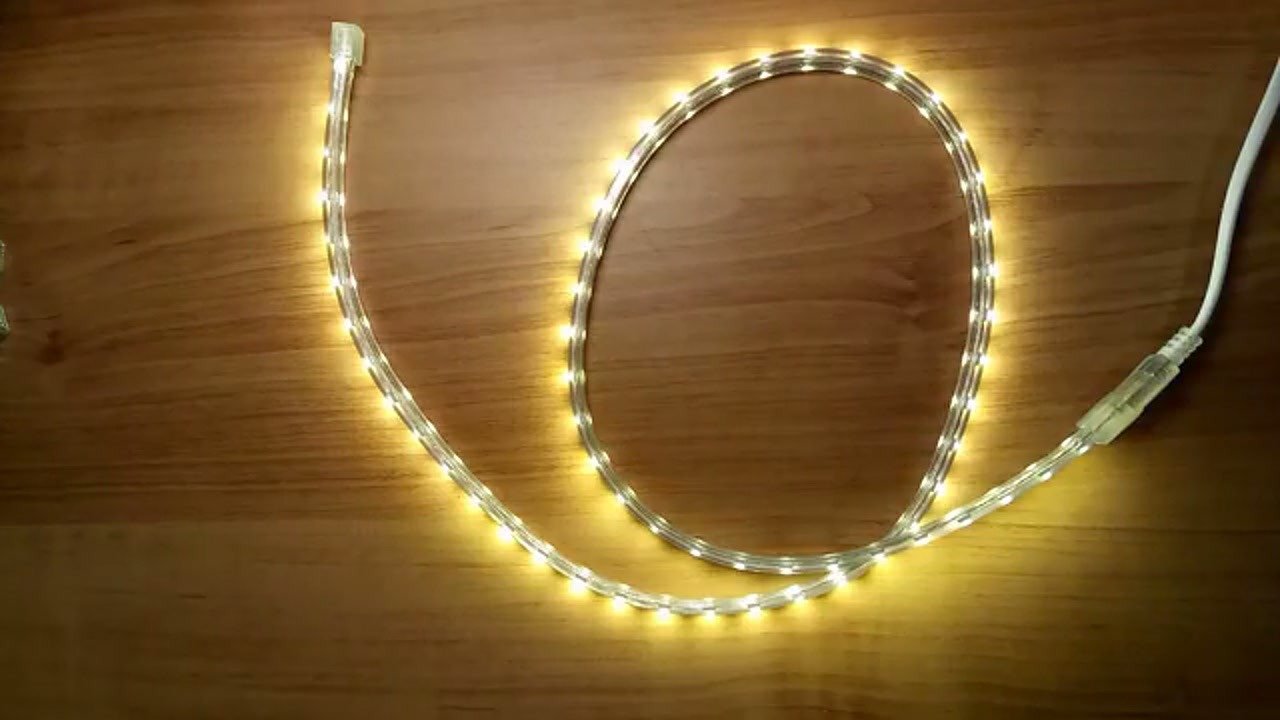

Warm White Output Test
Power on and you get a steady 3000K warm white glow, evenly spread across a 120-degree beam. No flicker — the rectification is stable. Brightness is plenty for accent lighting or a workshop. The strip stays cool to the touch during initial operation.
Final Inspection
Final check: every segment works. The IP67 rating covers the installation environment. The minimalist profile integrates into the workspace without extra hardware. A durable, long-term solution for static lighting.
⚠️ CAUTION: SAFETY WARNING!
Warning: This LED strip operates on 220V AC mains voltage. Always disconnect power before handling the strip or making connections. Ensure the rectifier plug is fully insulated and protected from moisture to prevent electrical shock.
Summary & Tips
The 220V SMD5050 strip is a clean, efficient answer for minimalist lighting. Dropping the external power supply simplifies installation and cuts wiring complexity. IP67 protection plus 3000K warm white output make it versatile for workshops or home perimeters. A practical upgrade that lasts.
📋 FAQ
❓ Do I need a transformer for this 220V LED strip?
Answer: No. The strip connects straight to 220V AC mains via its dedicated rectifier plug — no external transformer required.
❓ Can I cut the 220V LED strip to a custom length?
Answer: Yes. Cut points are marked along the strip so you can size it precisely for your installation area.
❓ Is this LED strip suitable for outdoor use?
Answer: The IP67 rating resists dust and moisture, making it suitable for many semi-outdoor or damp indoor environments.
